Home > Product > Mobile Lighting Towers
Product

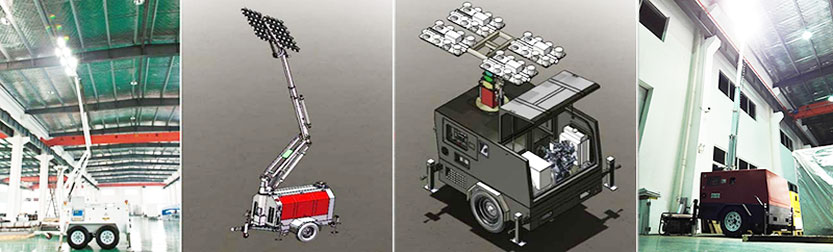

MOBILE LIGHTING TOWER
NSI light towers, relied on its high reliability, maximum safety, easy operation and simple maintenance etc., are suitable for varies applications like construction site, mining filed, rental business, public equipment service, accident handling, large-scale event, homeland defense and disaster relief.


  • 50HZ
  • 60HZ
Features:
Stable performance, High safety, High lumen, Energy conservation, High adaptability

Features description:
Genuine engine/alternator and high-level configuration ensure to provide reliable power for customer.
Standard design and personalized modification ensure delivery of the project at the earliest time.
Fashionable design, European style.
Safe and reliable operation.
Supporting safe lifting bars from top of the canopy.
High-tensile mast material and structure.
Powerful hydraulic lifting system.
Safety protection system to raise up and bring down the mast.
User-friendly operation interface.
Earth leakage protection system.
Reliable grounding system.
Fully bunded base frame, completely sealing up and friendly environmental protection.
Optional on road trailer, easy for transportation with low transport cost.
Clamshell canopy design allows maximal maintenance access.
Mast 360°rotation and lights 90°adjustment.
Various lights installation available.

Item

Model

NSLT-P9

NSLT-K7

NSLT-P7

NSLT-K5

NSLT-P9A

Light

Type of lights

Halide/LED

Halide/LED

Halide/LED

Halide/LED

Halide/LED

Number of lights

4/6

4/6

4/6

4/6

4/6

Total light output (W)

4000/6000

4000/6000

4000/6000

4000/6000

4000/6000

Light tilt

electric/hydraulic

electric/hydraulic

electric/hydraulic

electric/hydraulic

electric/hydraulic

Mast

Mast height(m)

9

9

9

9

9

Mast rotation

manual/hydraulic

manual/hydraulic

manual/hydraulic

manual/hydraulic

manual/hydraulic

Mast raise

manual/hydraulic

manual/hydraulic

manual/hydraulic

manual/hydraulic

manual/hydraulic

Stabilizers support

manual/hydraulic

manual/hydraulic

manual/hydraulic

manual/hydraulic

manual/hydraulic

Tilt

electric/hydraulic

electric/hydraulic

electric/hydraulic

electric/hydraulic

electric/hydraulic

Trailer

Height

2550

2550

2300

2300

2360

Length

3950

3950

2700

2700

2470

Width

2170

2170

1548

1548

1450

weight(Gross)

2150kg

2250kg

1370kg

1470kg

1240kg

Tow hitch

50mm ball

50mm ball

50mm ball

50mm ball

50mm ball

Axle

single

single

single

single

single

Tire and Rim size

LT235/85R16

LT235/85R16

175R13LT

175R13LT

175R13LT

Tire quantity

2/4

2/4

2/4

2/4

2/4

Brakes

drum brake/

hydraulic disc

drum/brake/

hydraulic disc

drum brake/

hydraulic disc

drum brake/

hydraulic disc

drum brake/

hydraulic disc

Engine

Engine model

403D-15G

D1105-E2BG

403D-11G

D905-E2BG

403A-15G1

Brand

PERKINS

KUBOTA

PERKINS

KUBOTA

PERKINS

Engine power

13kw/14.7kw

8.4kw/10.1kw

9.3kw/11.4kw

6.6kw/7.8kw

13kw

Engine speed(RPM)

1500/1800

1500/1800

1500/1800

1500/1800

1500

Fuel consumption(L/hr)

3.7

1.7

3.0

1.5

3.67

Emmission

StageIIIA

Stage II

StageIIIA

Stage II

N/A

Alternator

Brand

Stamford,Mecc,

LeroySomer

Stamford,Mecc,

LeroySomer

Stamford,Mecc,

LeroySomer

Stamford,Mecc,

LeroySomer

Stamford,Mecc,

LeroySomer

Voltage(V)

120,220,240V

120,220,240V

120,220,240V

120,220,240V

120,220,240V

Output(KW)

9/12

7/8

7/8

5/6

9

Frequency(HZ)

50/60

50/60

50/60

50/60

50

Insulation grade

H

Protection grade

IP23

Controller

Model

ALC700

Brand

Smartgen
